GR-FE 4.0L Engine Rebuild Kit – Toyota FJ/Tacoma/4Runner
GR-FE 4.0L Engine Rebuild Kit – Toyota FJ/Tacoma/4Runner
✔️Avoiding collisions when changing lanes
✔️Avoiding damage to the vehicle when parking
✔️Avoiding accidents with pedestrians and cyclists
LIMITED TIME | OFFER ENDS TONIGHT!
Couldn't load pickup availability
Get it between - and -.
Part Number:
Crankshaft Part Number#:
13401-31011, 13401-31010
1340131011, 1340131010
Connecting Rods Number#:
13201-39235, 13201-39126, 1320139235, 1320139126
1320109861, 1320109860, 1320109840, 1320139046, 1320139045, 1320139015, 1320139025
1320139235A0, 1320139235B0, 1320139235C0, 1320139126A0, 1320139126B0, 1320139126C0

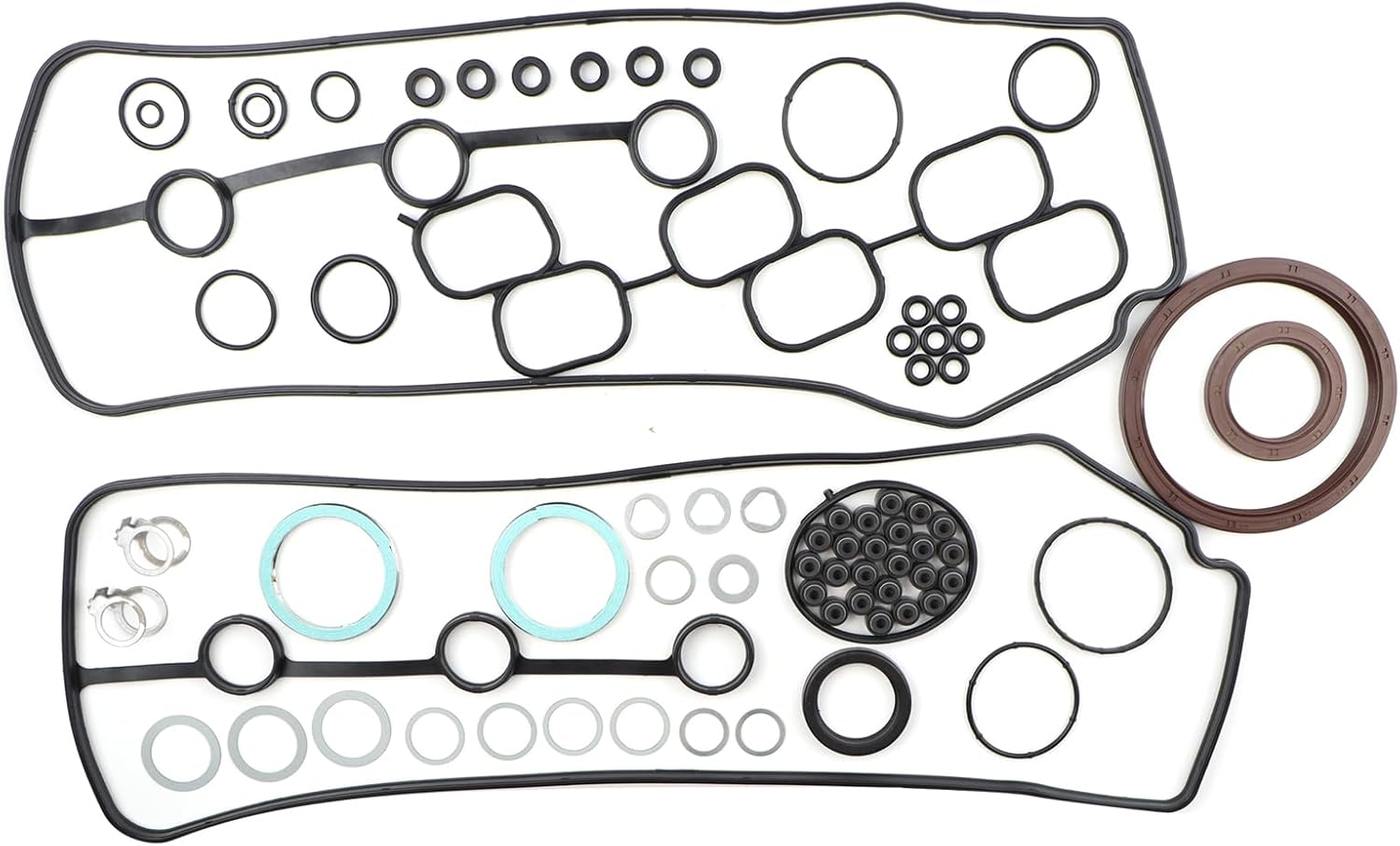

Gasket Seals Bolts Kit Part Number#:
HS26290PT, HS26330PT, HS26330PT-1, ES72249
Component:

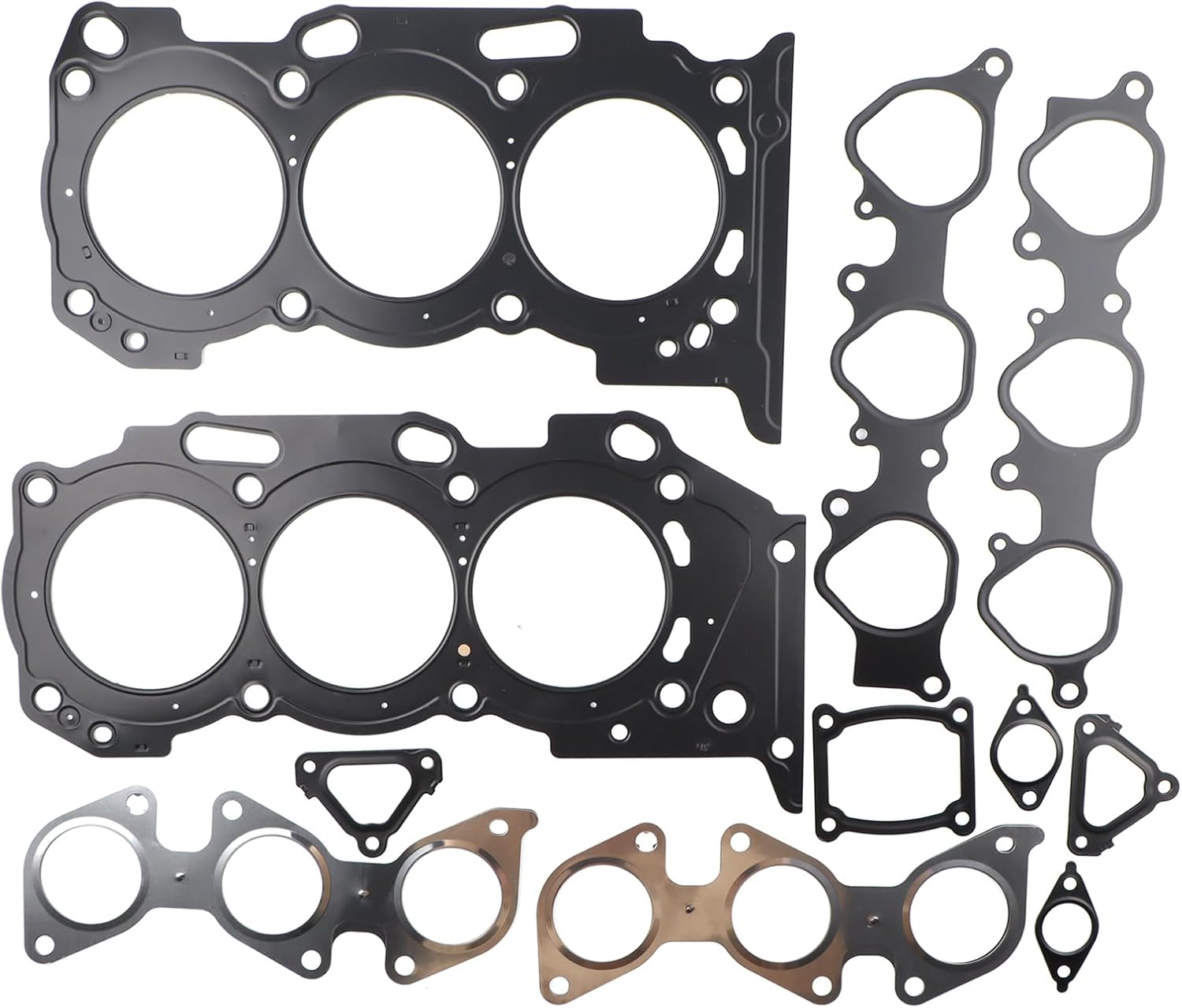

Multiple Layers Steel (MLS) Head Gasket
Valve Cover Gasket
Valve Stem Seals
Intake Manifold Gasket
Exhaust Manifold Gasket
Front Camshaft Seal
O-rings
Other Small Gaskets
16 Cylinder Head Bolts
Pistons & Rings Kit Part Number#:
13101-0P020, 13101-31030, 13101-31120-A0
Spec
Standard Bore Diameter: 94.00mm
1st Group: 1.20mm
2nd Group: 1.20mm
Oil Ring: 2.00mm
6 Piston Wrist Pins
12 Cir Clips
Main & Rod Bearings Part Number#:
MAIN: 11701-31080, 11701-31050, 11701-31041, 11701-31050, 11701-31040
CON: 13041-31090, 13041-31042, 13041-0P070, 13041-0P030, 13041-0P050, 13041-31041
THRUST WASHERS Part Number#:11011-31071, 11011-31070
Intake & Exhaust Valve Part Number#:
Intake: 13711-31070, 13711-31071
Exhaust: 13715-31090, 13715-31091

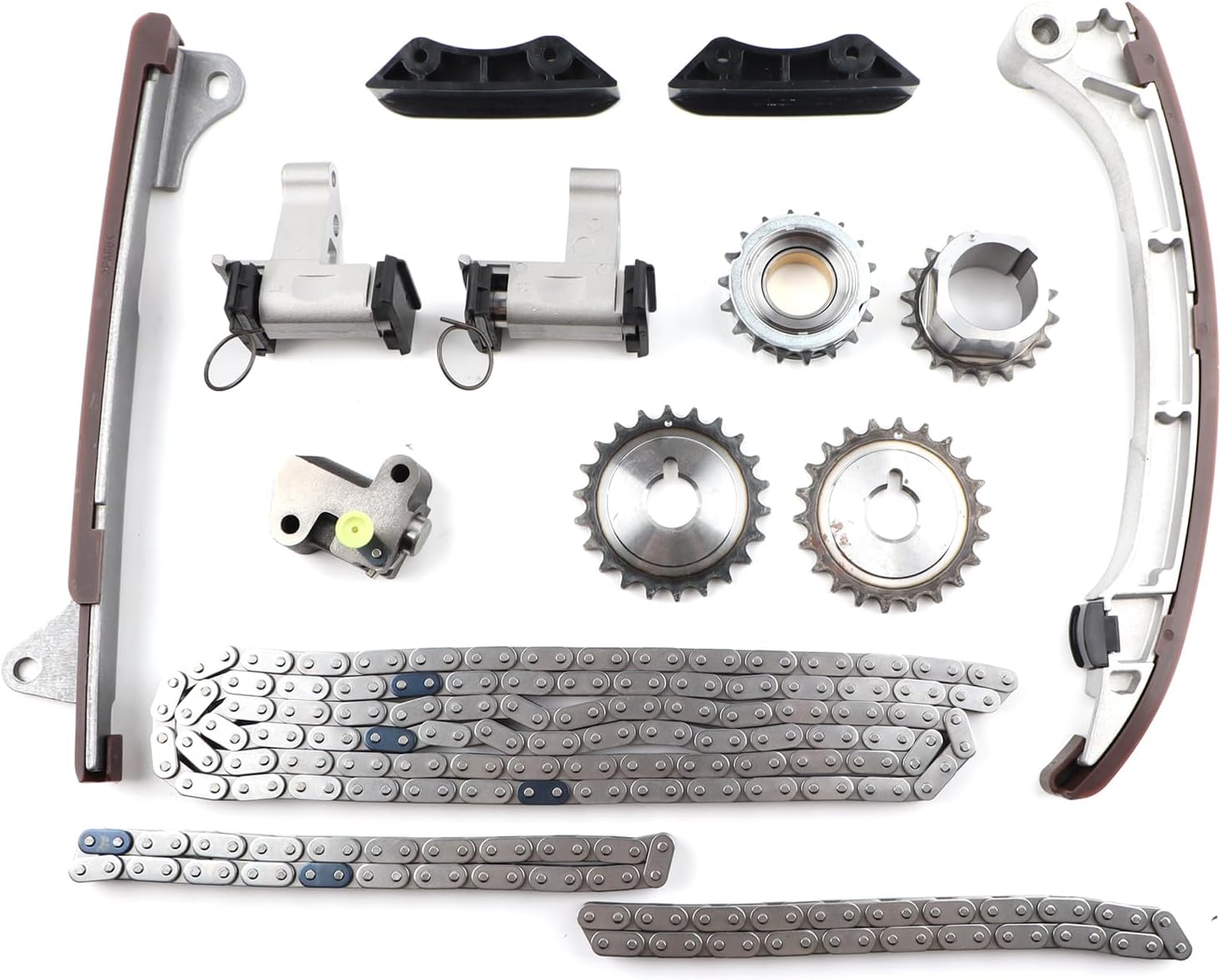

Timing Kit Part Number#:
13506-AD010, 13540-AD011, 13530-0P011, 13507-AD010, 13560-AD010,
13559-AD010, 13561-AD010, 13562-AD010, 13550-AD010, 13521-AD010
Component
1x Primary Timing Chain (178 links - lower)
2x Secondary Timing Chains (cam to cam - upper)
1x Primary Tensioner (lower)
2x Secondary Tensioners (left and right - upper)
2x Guide Rails (left and right - upper)
1x Guide Rail (left fixed rail)
1x Guide Rail (right tensioner rail)
2x Secondary Cam Sprockets (upper)
1x Idler Sprocket (18 teeth)
1x Crank Sprocket (18 teeth)
Application Model:
2003-2015 TOYOTA 4RUNNER 4.0L 3956CC 241CID V6 DOHC, (24 VALVE), ENG CODE "1GRFE"
2007-2014 TOYOTA FJ CRUISER 4.0L 3956CC 241CID V6 DOHC, (24 VALVE), ENG CODE "1GRFE"
2005-2015 TOYOTA TACOMA 4.0L 3956CC 241CID V6 DOHC, (24 VALVE), ENG CODE "1GRFE"
2005-2014 TOYOTA TUNDRA 4.0L 3956CC 241CID V6 DOHC, (24 VALVE), ENG CODE "1GRFE"

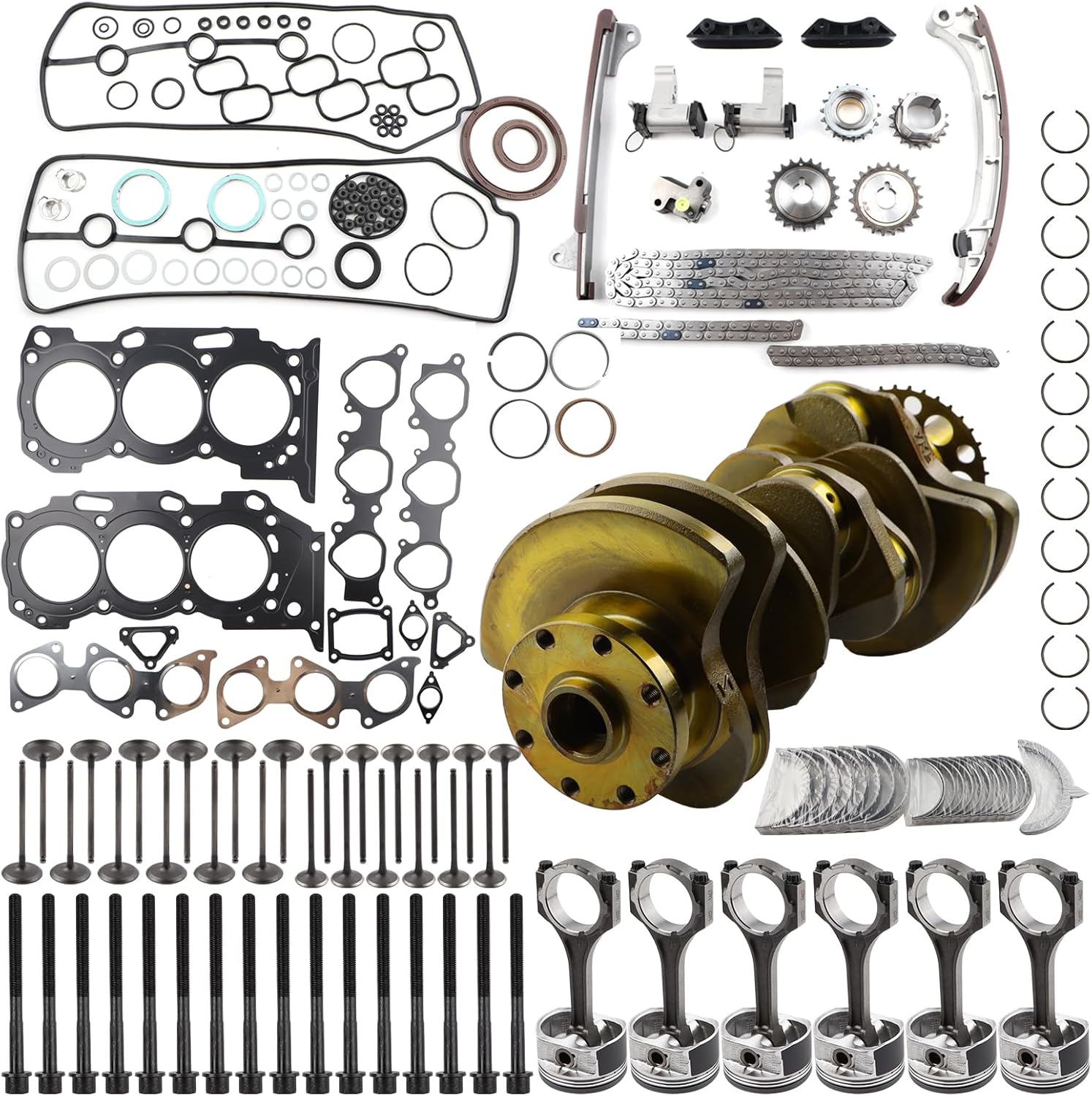

Package Include:

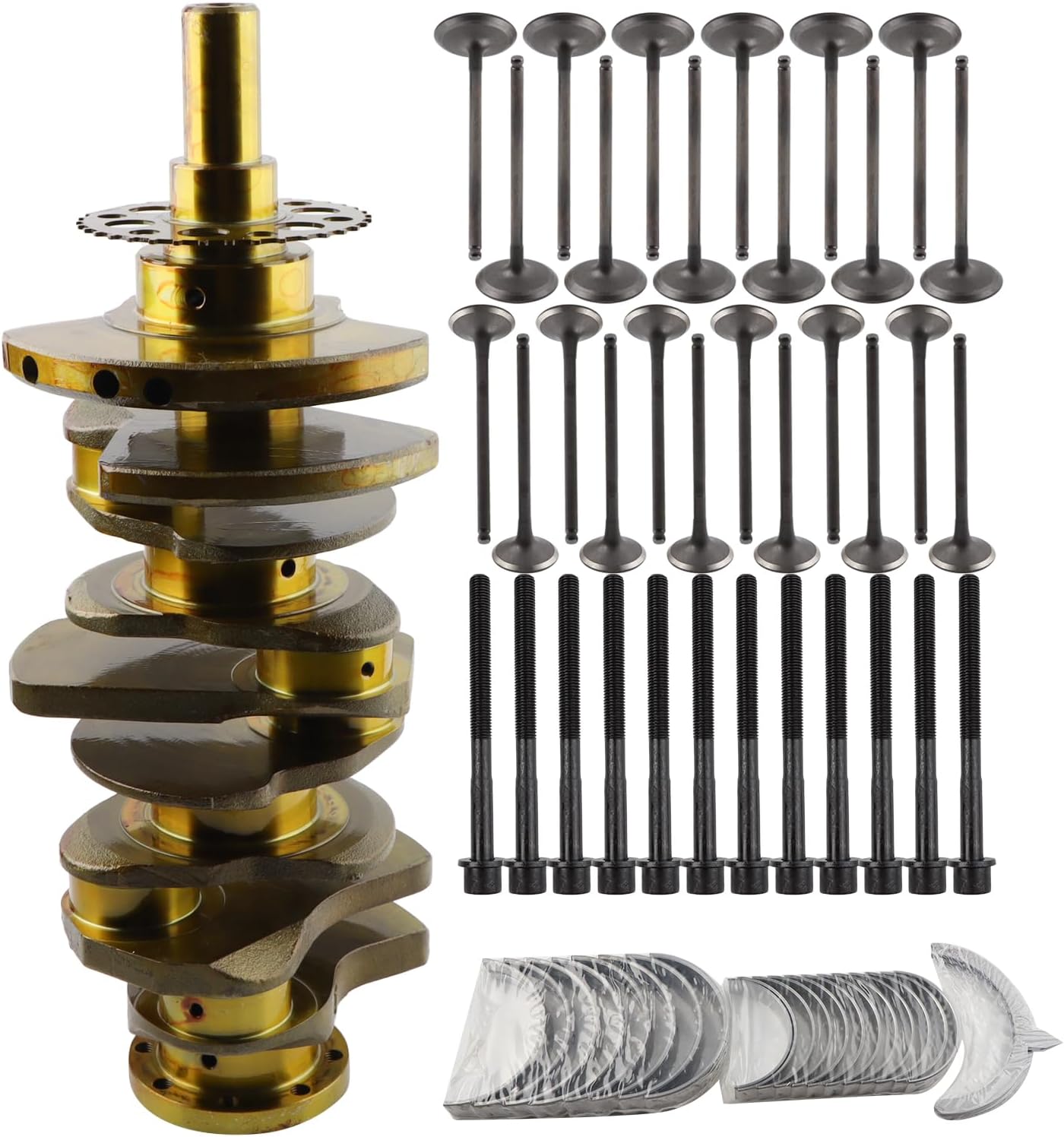

1pcs x Crankshaft

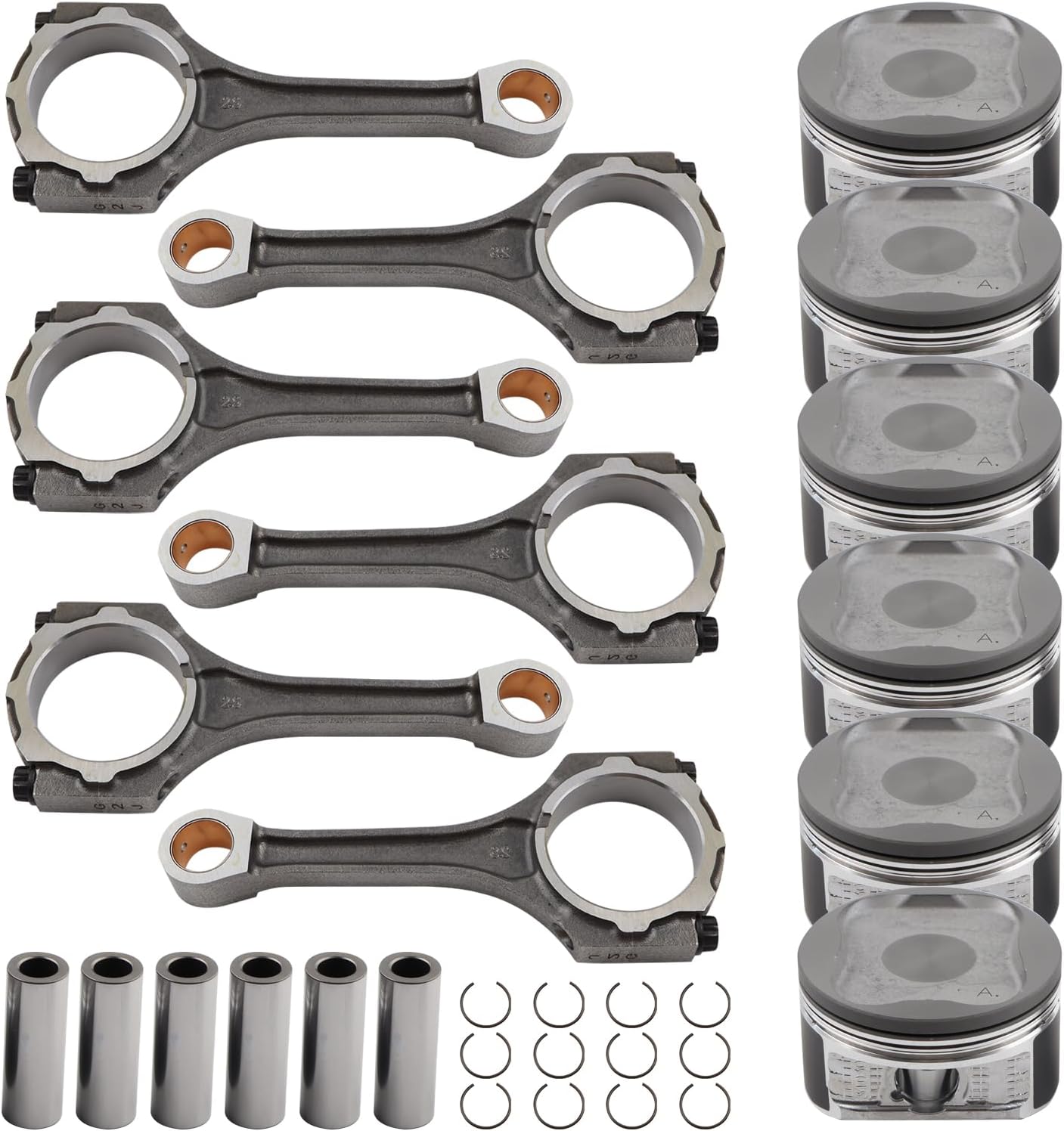

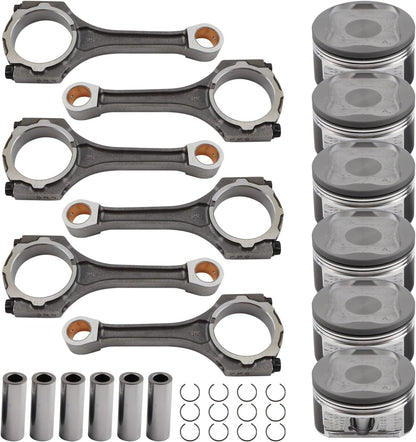

6pcs x Connecting Rods
1set x Pistons & Rings Kit
1set x Gasket Seals Bolts Kit
1set x Main & Rods Bearings Kit (with Thrust Washers)
1set x Timing Chain Kit
1set x Intake & Exhaust Valve Kit
- 🍂𝗡𝗼𝘁𝗲:Please check with the OEM number for the right compatibility before purchase.
- 🍂𝗙𝗶𝘁𝗺𝗲𝗻𝘁:Compatible with Toyota 4.0L V6 1GRFE Engine:2003-2015 Toyota 4Runner;2007-2014 Toyota FJ Cruiser;2005-2015 Toyota Tacoma;2005-2014 Toyota Tundra.
- 🍂𝗢𝗘𝗠 𝗡𝘂𝗺𝗯𝗲𝗿:13401-31011;13401-31010;13201-39235;13201-39126;1320139235;1320139126;HS26290PT;HS26330PT;13101-0P020;13101-31030;11701-31080;11701-31050;13711-31070;13711-31071;13715-31090;13715-31091;13506-AD010;13540-AD011.
- 🍂𝐏𝗿𝐞𝗺𝗶𝘂𝗺 𝐐𝐮𝐚𝗹𝐢𝐭𝐲:Made of high quality metal and plastic, with good durability, corrosion resistant and stable performance for long service life. It can meet or exceed OEM standard to match the original part.
- 📍𝗦𝗲𝗿𝘃𝗶𝗰𝗲:Professional installation is highly recommended.If you have any questions about the part, please contact us before purchasing it,we'll reply you within 24 hour.
